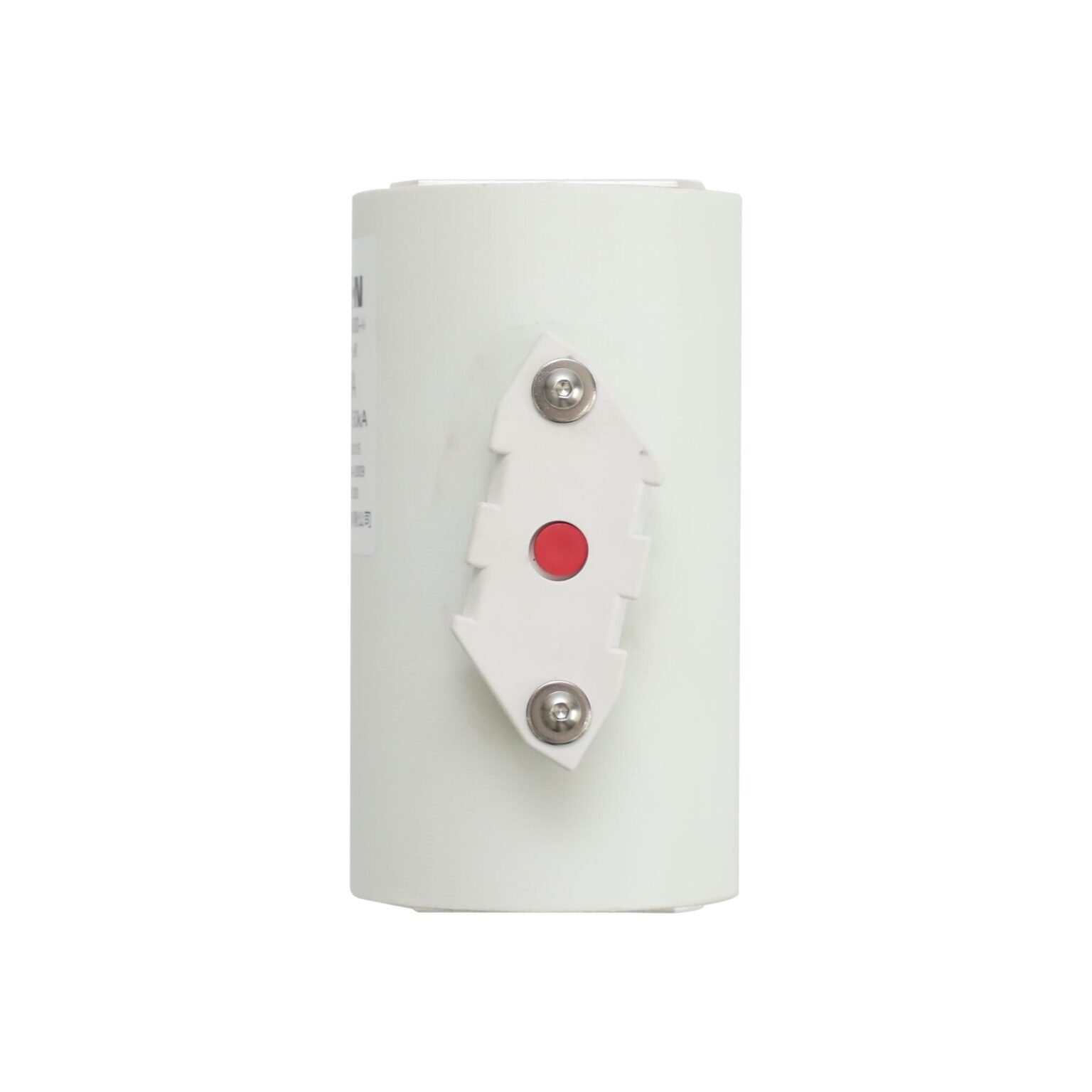

AC 1600V Marine-Grade Fuse
- Marine-grade AC fuse from the HRE series, engineered for shipboard power system and semiconductor protection
- Rated voltage: AC 1600V | Rated current: 200A – 1,500A
- Rated breaking capacity: 50 kA | Protection category: aR
- Suitable for both battery system (aBat) and semiconductor component (aR) protection
- UL, CE, TUV, CQC, and CCS certified
Interested?
- Send Inquiry Today!
Key Features:
- Part of the HRE series — specifically designed for marine applications requiring reliable protection of battery systems and semiconductor components
- Rated for AC 1600V with a broad current range of 200A to 1,500A, accommodating a wide variety of shipboard power distribution requirements
- Breaking capacity of 50 kA for dependable fault interruption in demanding marine environments
- aR protection category — optimized for semiconductor and power converter protection; also applicable for battery system protection (aBat category)
- Provides effective protection against both positive and negative fault current paths, including short-circuit events
- Low I²t value minimizes thermal stress on downstream components during fault conditions
- Low temperature rise and low power consumption for improved system efficiency and reduced heat load
- CCS (China Classification Society) certified — meeting international marine classification requirements
- REACH declaration available upon request; RoHS compliant
Typical Applications:
- Marine battery and power generation systems
- Diesel generator protection on board vessels
- Shore-power connection systems
- Low-voltage marine switchboards
- Monitoring and auxiliary power supply systems
Certifications:
Product:
- UL
- CE
- TUV
- CQC
- CCS
- REACH declaration available upon request
- RoHS compliant
Electrical Specifications:
- Rated Voltage: AC 1600V
- Rated Current: 200A – 1,500A
- Rated Breaking Capacity: 50 kA
- Protection Category: aR
- Series: HRE
